BUS / TRAILERS   /  Front Position / Direction Indicator

DI-04

View 1

Key Features

  • High-Efficiency LED Array: Equipped with 6 precision LEDs (0.2W each) for optimal brightness.
  • Dual Color Availability: Available in crystal White (DI-04-W) and safety Amber (DI-04-A).
  • Multi-Voltage Support: Seamlessly operates on both 12V and 24V electrical systems.
  • Compact Mounting: Designed with a 36mm center distance (CD) for versatile fitment.
  • Industrial Grade Material: Full Polycarbonate (PC) lens and base for extreme impact resistance.

Specifications 6 LED SYSTEM 12V / 24V

Light Source
6 High-Intensity LEDs (0.2 W each)
Material
Lens: Polycarbonate (PC) | Base: Polycarbonate (PC)
Voltage
12V / 24V DC Compatible
Mounting
CD 36 mm
Available Colors
White (DI-04-W), Amber (DI-04-A)
Applications
E-Rickshaws, Buses, Coaches, and Heavy Trucks

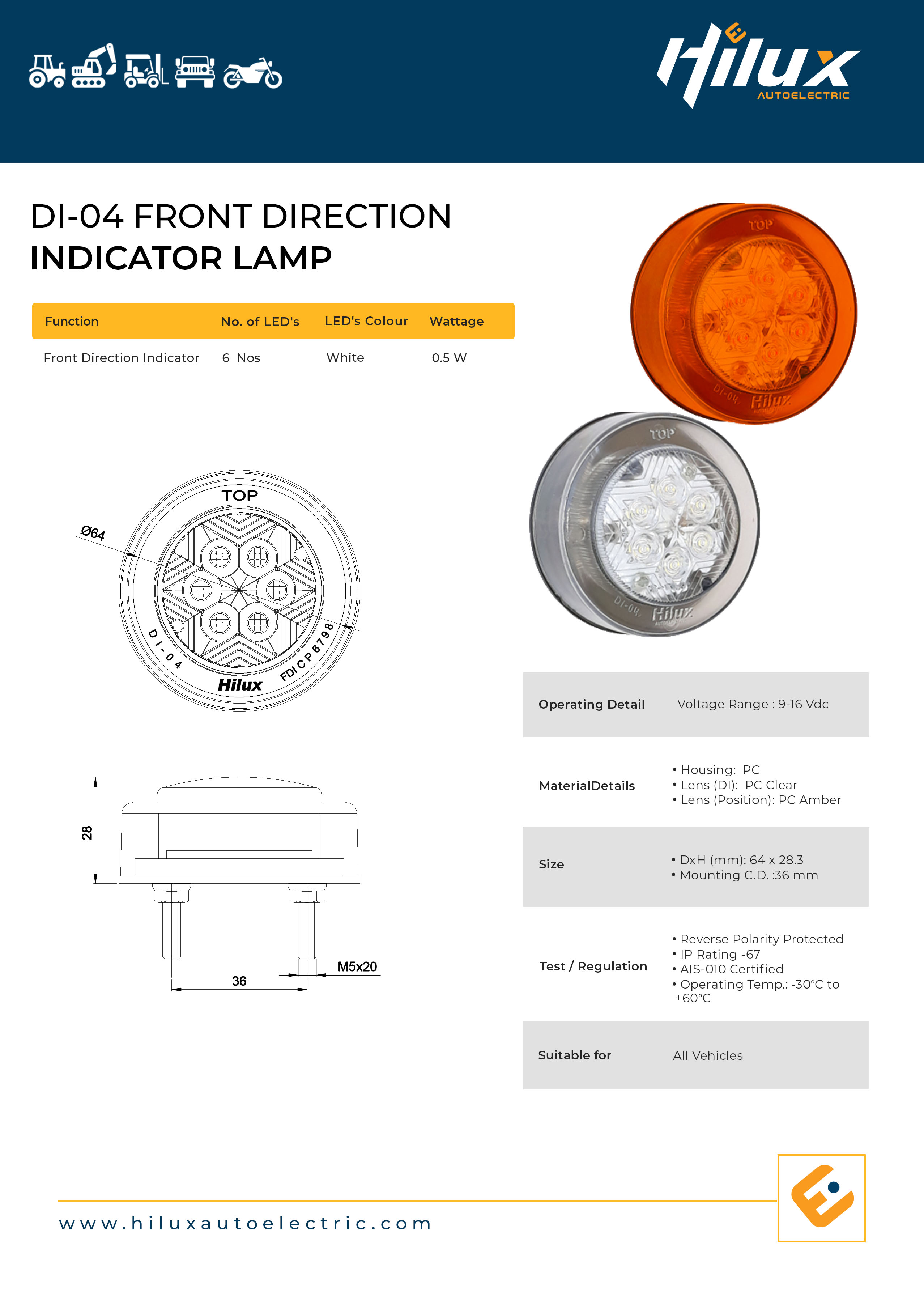

Specification Document — DI-04

Download technical blueprints and wiring diagrams (PDF, 1.5 MB)

Download
