Key Features
- 30 High-Intensity LEDs: Optimized 30-LED configuration provides clear 360° warning signals.
- IP56 Weather Shield: Certified protection against dust ingress and heavy water splashes/rain.
- Multi-Voltage Adaptability: Reliable performance across DC 12V and 24V vehicle systems.
- Compact Form Factor: 130 x 100 mm profile, ideal for roof or pillar mounting on agricultural equipment.
- Vibration Resistant: Robust internal components designed to handle the shocks of tractor operations.
- Thermal Efficiency: Advanced circuit design ensures consistent light output with low heat generation.
Specifications 30 LED 12V-24V IP 56
Light Source
30 High-Brightness LEDs
Size / Dimensions
130 x 100 mm
Operating Voltage
DC 12V - 24V (Dual Voltage Support)
Protection Rating
IP 56 (Dust & Water Jet Protected)
Application
Tractors, Farm Machinery & Utility Vehicles

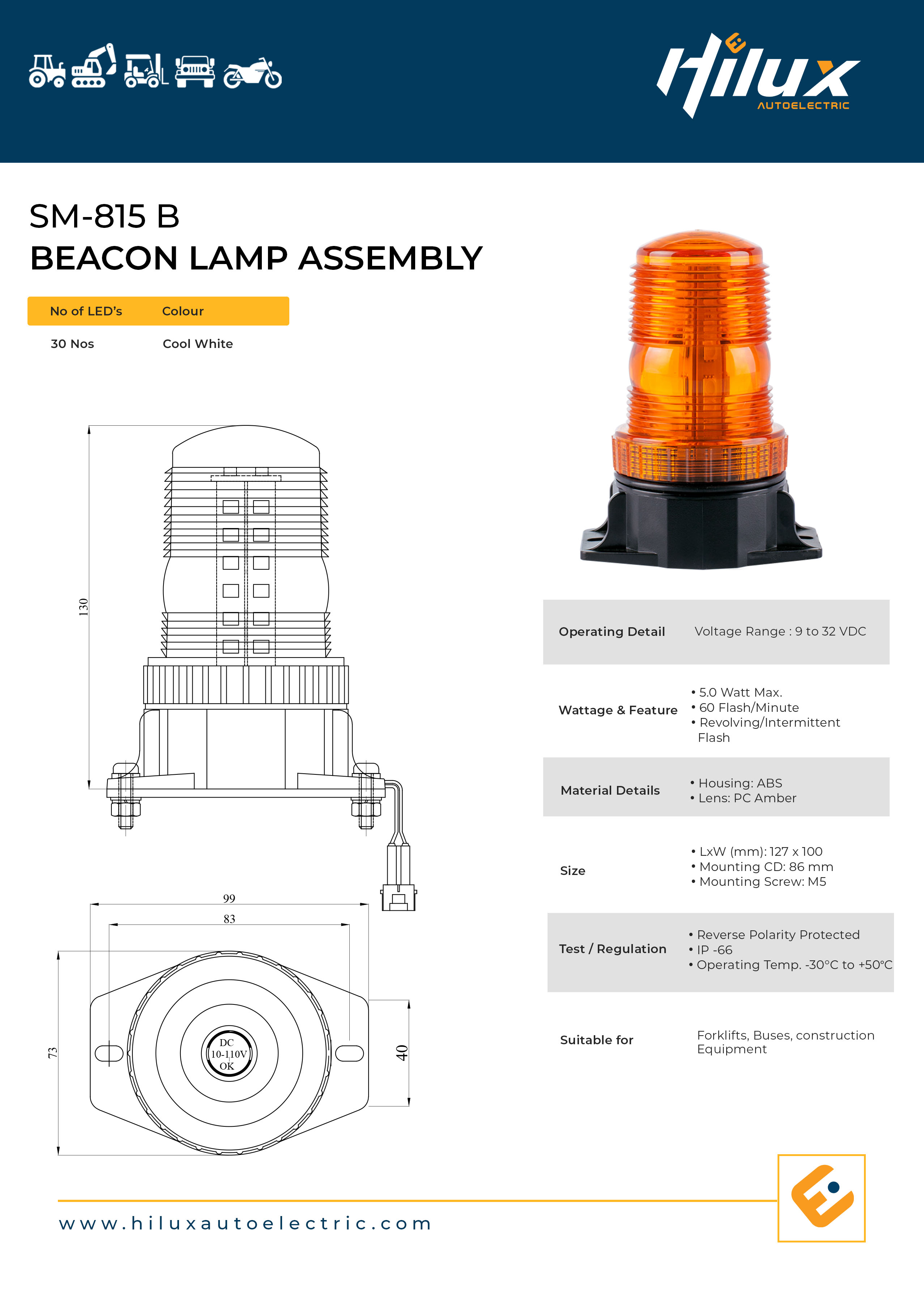

Specification Document — SM815B
Download technical sheet and safety compliance data (PDF, 1.5 MB)
