Key Features

  • Optimized Performance: Engineered for clear front positioning and high-visibility direction indication.
  • Polycarbonate Lens: Superior impact resistance and optical clarity for safer field operations.
  • Rugged Black Housing: High-grade ABS Black construction provides excellent durability and heat resistance.
  • Advanced Sealing: Fully water-sealed unit prevents moisture and dust ingress in harsh environments.
  • Large CD Profile: Designed with a 150.5 mm mounting CD for stable and secure fitment.
  • Standard Bulb Compatibility: Supports 12V-21W (Direction) and 12V-5W (Position) bulbs for easy service.

Specifications HALOGEN 12V DC PC LENS

Bulb Fitment
12V - 21W (Indicator) | 12V - 5W (Parking)
Mounting CD
150.5 mm
Housing Material
High-Impact ABS (Black)
Lens Material
Optical Grade Polycarbonate
Weather Rating
Fully Water Sealed Assembly
Application
Tractor Front Signaling / Position Indication

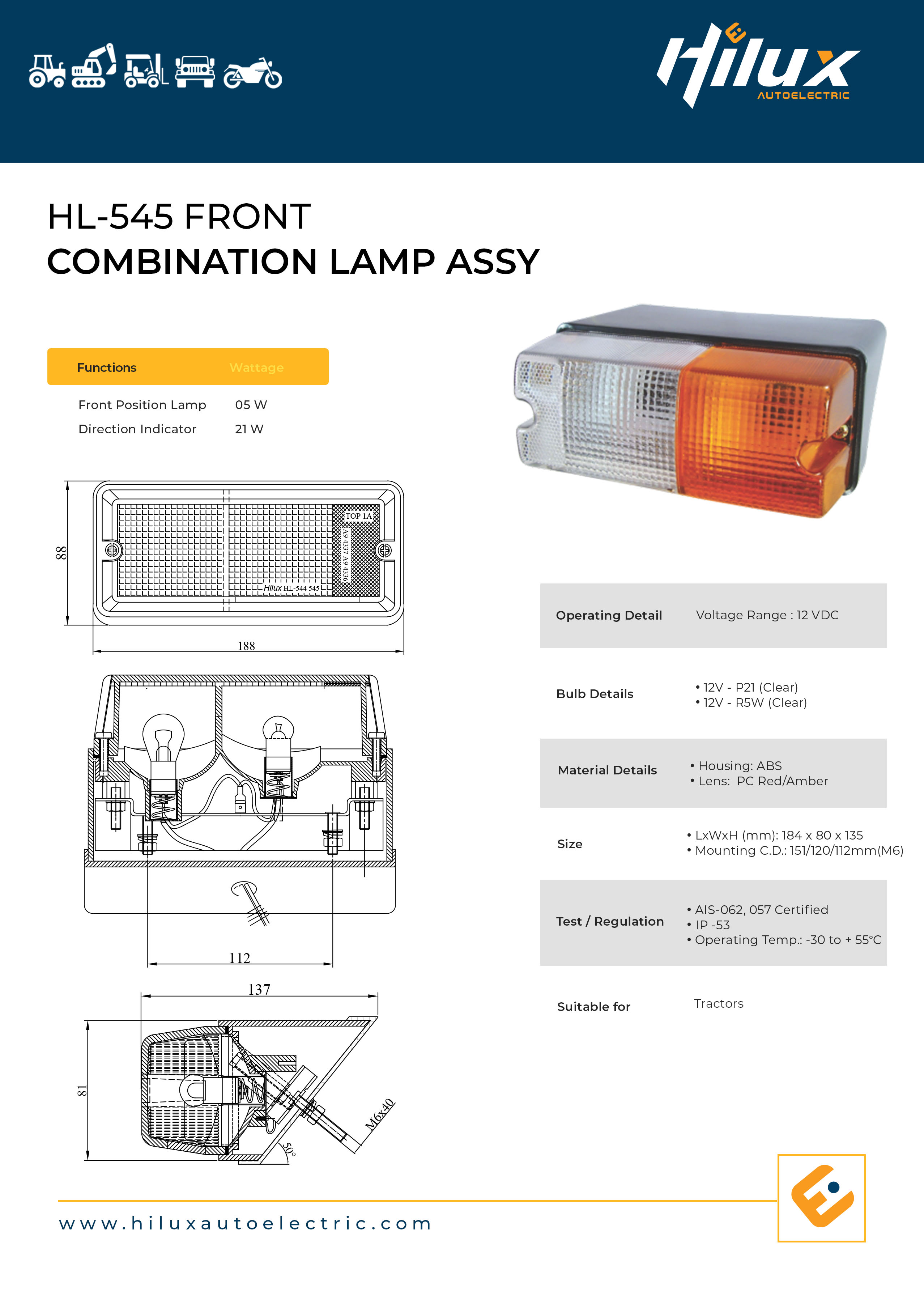

Specification Document — HL 545

Download technical blueprints and mounting guides (PDF, 1.5 MB)

Download
