Key Features

  • Advanced LED Array: Equipped with 6 LEDs for front indicator and 6 LEDs for parking functions.
  • Superior Optics: PMMA Lens provides high clarity and UV resistance for long-term use.
  • Rugged Construction: High-grade ABS housing designed for agricultural environments.
  • Water Sealed: Fully sealed unit to protect internal electronics from mud, moisture, and dust.
  • Optimized Mounting: Features a 112 mm mounting CD for precise fitment on tractors.
  • Energy Efficient: Low power consumption LED technology improves battery efficiency.

Specifications 12 LED 12V DC WATER SEALED

Bulb Fitment
6 LEDs (Indicator Function) + 6 LEDs (Parking Function)
Mounting CD
112 mm
Housing Material
ABS (Acrylonitrile Butadiene Styrene)
Lens Material
PMMA (Acrylic)
Weather Protection
Fully Water Sealed Design
Application
Tractor Front Positioning / Signaling

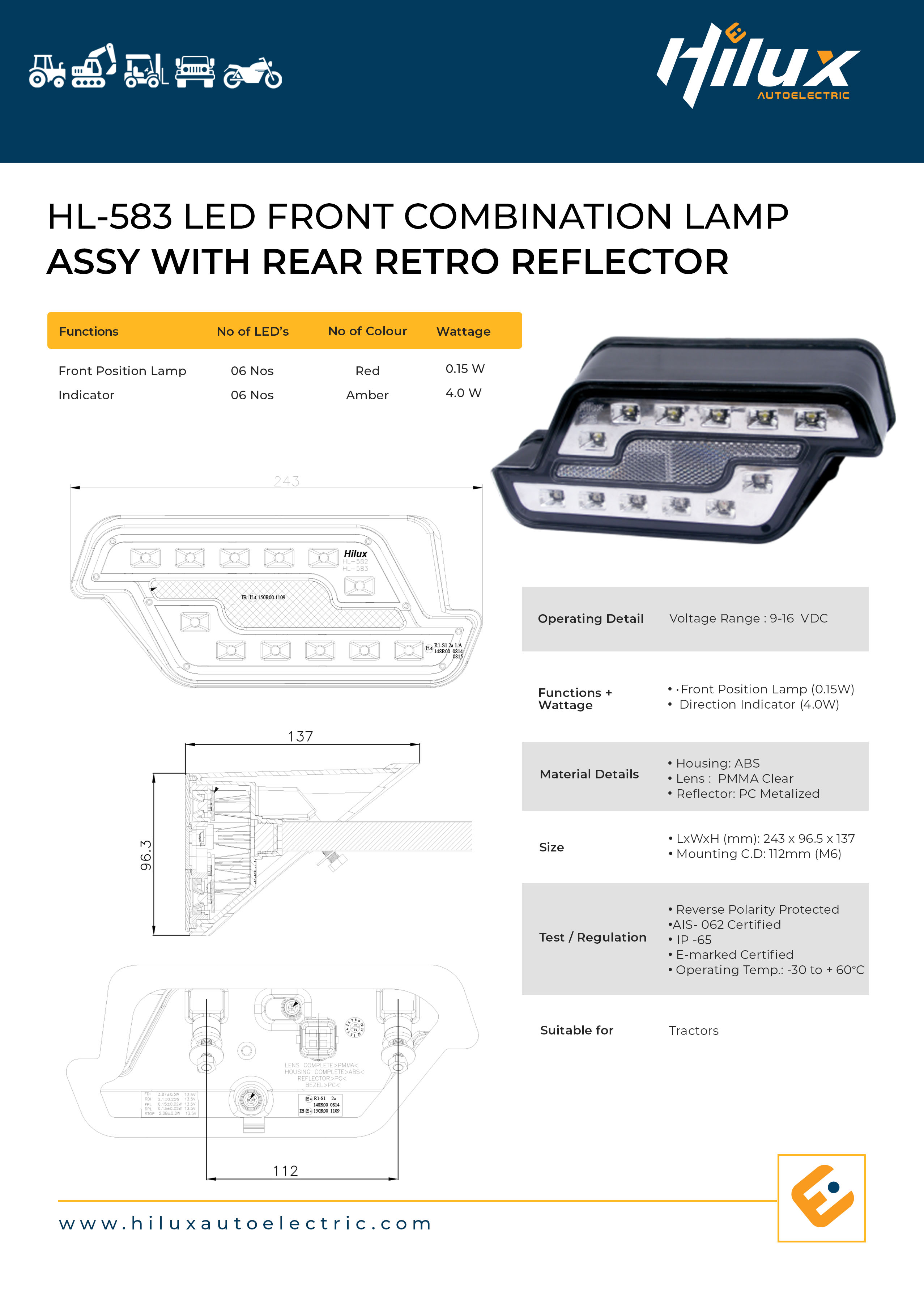

Specification Document — HL 583 LED

Download the technical manual and installation guide (PDF, 1.5 MB)

Download
